Product Description

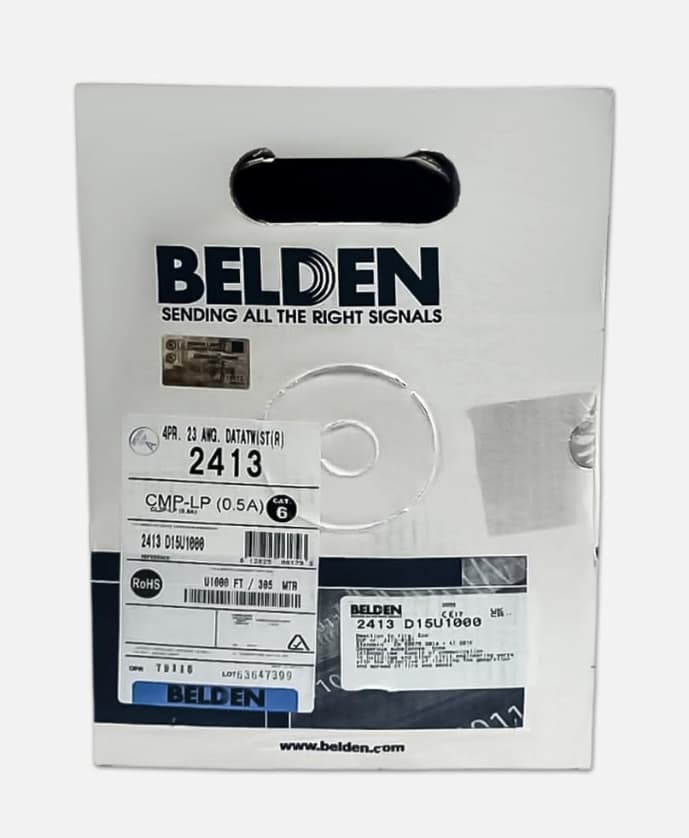

Belden 2413 -CAT6+ (350 MHz), 4-Pair, U/UTP-Unshielded, Plenum-CMP, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Dual FRPO/FEP Insulation, Tape Separator, Ripcord, Flamarrest® Jacket. Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155 ATM, 622 ATM, 250MHz Category 6
Features & Benefits
- Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
- Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
- Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
- Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
- Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders
Product Overview
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 AWG | Solid | BC – Bare Copper | 4 |
Insulation
| Material | Color Code |
|---|---|
| PO+FEP – Polyolefin + Fluorinated Ethylene Propylene | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
Outer Jacket
| Separator | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Dielectric Tape (Patented) | PVC – Polyvinyl Chloride | Flamarrest® | 0.224 in (5.69 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.224 in (5.69 mm) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 78 Ohm/km (24 Ohm/1000ft) | 330 pF/100m |
Delay
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 35 ns/100m | 72% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 dB/100m | 79.3 | 77.3 | 77.3 | 75.3 | 70.8 | 67.8 | 20.0 | 100 ± 15 | 102 ± 15 |
| 4 | 3.7 dB/100m | 70.3 | 68.3 | 66.5 | 64.5 | 58.8 | 55.8 | 23.6 | 100 ± 15 | 100 ± 15 |
| 8 | 5.3 dB/100m | 65.8 | 63.8 | 60.5 | 58.5 | 52.7 | 49.7 | 25.3 | 100 ± 15 | 100 ± 15 |
| 10 | 5.9 dB/100m | 64.3 | 62.3 | 58.4 | 56.4 | 50.8 | 47.8 | 26.0 | 100 ± 15 | 100 ± 15 |
| 16 | 7.4 dB/100m | 61.2 | 59.2 | 53.8 | 51.8 | 46.7 | 43.7 | 26.0 | 100 ± 15 | 100 ± 15 |
| 20 | 8.3 dB/100m | 59.8 | 57.8 | 51.4 | 49.4 | 44.8 | 41.8 | 26.0 | 100 ± 15 | 100 ± 15 |
