Product Description

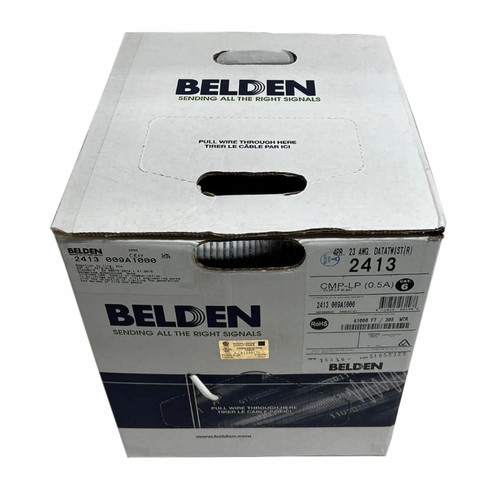

High-Performance Cat6 Plenum (CMP) Ethernet Cable
Reliable, Fast, and Safe Networking Solution
Designed for high-speed voice, data, video, and security applications, this Cat6 Plenum Ethernet Cable ensures seamless performance in commercial and residential installations. Featuring a flame-retardant jacket, it is perfect for air-handling spaces like drop ceilings and ventilation ducts.
Key Features:
- Supports 10/100/1000 Mbps for smooth and uninterrupted connectivity.
- Constructed with 23 AWG solid copper-clad aluminum (CCA) conductors for durability.
- Plenum-rated (CMP) low-smoke, flame-retardant insulation for safe air-handling installation.
- 1,000 feet (305 meters) in an EZ-Pull box with length markings every two feet.
- Ultra-smooth jacket for easy pulling through tight spaces.
- Twisted pairs with color-coded stripes for effortless identification.
- Includes a built-in ripcord for quick stripping and installation.
- Flexible and easy to install for seamless networking setups.
- EZ-Pull Box Packaging prevents tangling, crushing, and water damage.
- Delivers optimum Cat6 performance with future-ready flexibility.
- Third-party verified for guaranteed performance and RoHS compliance.
- Free from restricted metals and hazardous compounds for safer use.
- Indoor/Outdoor rated – one cable for multiple applications.
Technical Specifications:
| Specification | Details |
|---|---|
| Conductor | 23 AWG Solid Copper-clad Aluminum |
| Insulation | High-Density Polyethylene (HDPE) |
| Jacket | Flame Retardant Polyvinyl Chloride (PVC) |
| Installation Temperature | 0°C to 50°C |
| Operating Temperature | -2°C to 60°C |
| Velocity of Propagation | 72% |
| Mutual Capacitance | 14 pF/ft Nominal |
| Capacitance Unbalance | 330 pF/ft Maximum |
| Maximum Conductor D.C.R. | 86 ?/1,000 ft |
| Maximum Delay Skew | 18 ns/100m |
| Characteristic Impedance | 100 ± 15% (0.772 MHz - 100 MHz), 100 ± 22% (100 MHz - 250 MHz), 100 ± 32% (251 MHz - 550 MHz) |
| Minimum Bend Radius | 1.0 in. |
| Nominal O.D | 6.1±0.2mm |
| Color Codes |
|
Applications:
- Supports all Gigabit Ethernet/1000BASE-T/IEEE 802.3ab
- ATM up to 155 Mbps
- 100 Mbps Fast Ethernet 100BASE-T/IEEE 802.3
- ANSI.X3.263 FDDI TP-PMD
- Ethernet 10BASE-T/IEEE 802.3
- 4 & 16 Mbps Token Ring/IEEE 802.5
- T1/E1, xDSL, ISDN
- 550 MHz Broadband Video
- Future technologies including ATM at 622 Mbps, 1.2, 2.4, and 4.8 Gbps
